Essentials

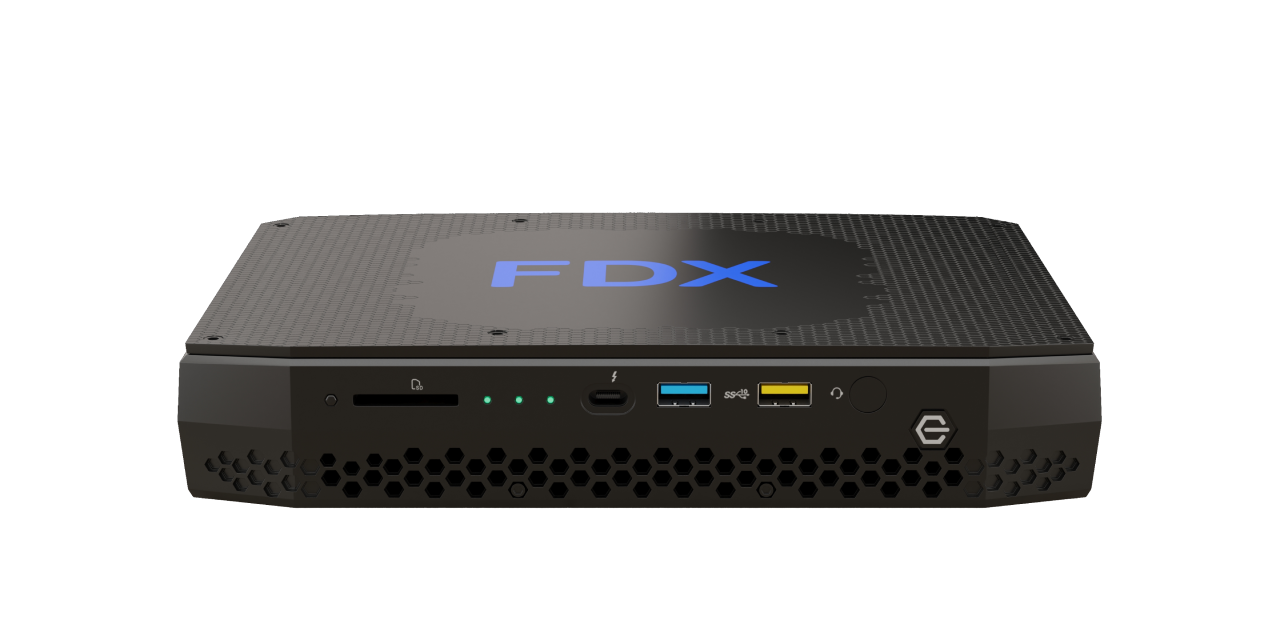

FDX Box Hardware
Status
Launched
Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Launch Date
Q1’18
Supported Operating Systems
Windows 10, 64-bit*, Windows Server 2016*
Board Number
NUC8i7HNB
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported
2
Lithography
14 nm
TDP
65 w
DC Input Voltage Supported
19 VDC
Board Chipset
Mobile Intel® HM175 Chipset
Processor Included
Intel® Core™ i7-8705G Processor
Warranty Period
3 yrs
Memory & Storage
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2400+ 1.2V SO-DIMM
Max # of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max # of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Intel® HD Graphics 630
Integrated Graphics
Yes
Graphics Output
Graphics Output
# of Displays Supported
6
Discrete Graphics
Radeon™ RX Vega M GL graphics
Enhancement Options
PCI Express Revision
Gen3
PCI Express Configurations
Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot
SDXC with UHS-I support
M.2 Card Slot (wireless)
2230
M.2 Card Slot (storage)
22×42/80, 22×80
I/O Specifications
# of USB Ports
13
USB Configuration
F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3
USB Revision
2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
1F, 4R, 2i
Total # of SATA Ports
2
Max # of SATA 6.0 Gb/s Ports
2
RAID Configuration
2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN
Intel® Ethernet Connection i219-LM and i210-AT
Integrated Wireless
Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
# of Thunderbolt™ Ports
# of Thunderbolt™ Ports
Package Specifications
Geräteabmessungen
221 x 142 x 39mm
Other
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro® Platform Eligibility
No
TPM
No
Intel® HD Audio Technology
Yes
Intel® Rapid Storage Technology
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Software
Readable Codecs
Red Raw | Magic Lantern MLV |
ProRes 422 | XDCAM EX |
ProRes 4444 | XDCAM HD |
AVC | MXF |
AVC-Intra | H.264 mov |
HEVC | H.264 mp4 |
Writable Codecs
DNxHD | Avid Container | 1920×1080 | Bitrate: 36Mb/s |
H.264 | Up toEX | 1920×1080 | Up top 10 MBit/s |
AVC-INTRA 100 | 1920×1080 | 100 Mb/s | |
ProRes | 1920×1080 | LT or Proxy | |
ProRes | 3840×2160 | LT or Proxy | |
CinemaDNG |
Battery Power Consumption
RTest source Materialed |
1920×1080 XAVC from Sony Alpha on SD Cards |
60GB per card (sample 046, from Camelot) |
Workflow |
2 Backups, to LaCie 2.5” HDDs |
No Verify |
Time to process 1 Card: 00:12:18 |
We recommend using Jauch Power Banks:
JPB20AHB
Energy: 73 Wh
Copied 4 cards
Had 48% of capacity remaining
Which lasts for 45 minutes of idle time.
JPB20AHB can copy 7 cards
If there is no idle time between.
* Transcodes are disabled in battery mode, CPU power is reduced by 15% to prevent to have power peaks
Versions
1.1.1. released on 1.3.2020
- DNX HD Transcode integrated
- DNX HD Transcode integrated
- DNX HD Transcode integrated
1.1.0 released on 1.1.2020
- DNX HD Transcode integrated
- DNX HD Transcode integrated
19.1.2020
- New Feature: Email notifications on completed upload.
- Improvement: Redesigned Copy Report PDFs.
- Improvement: Redesigned Dashboard layout.
- Improvemen
