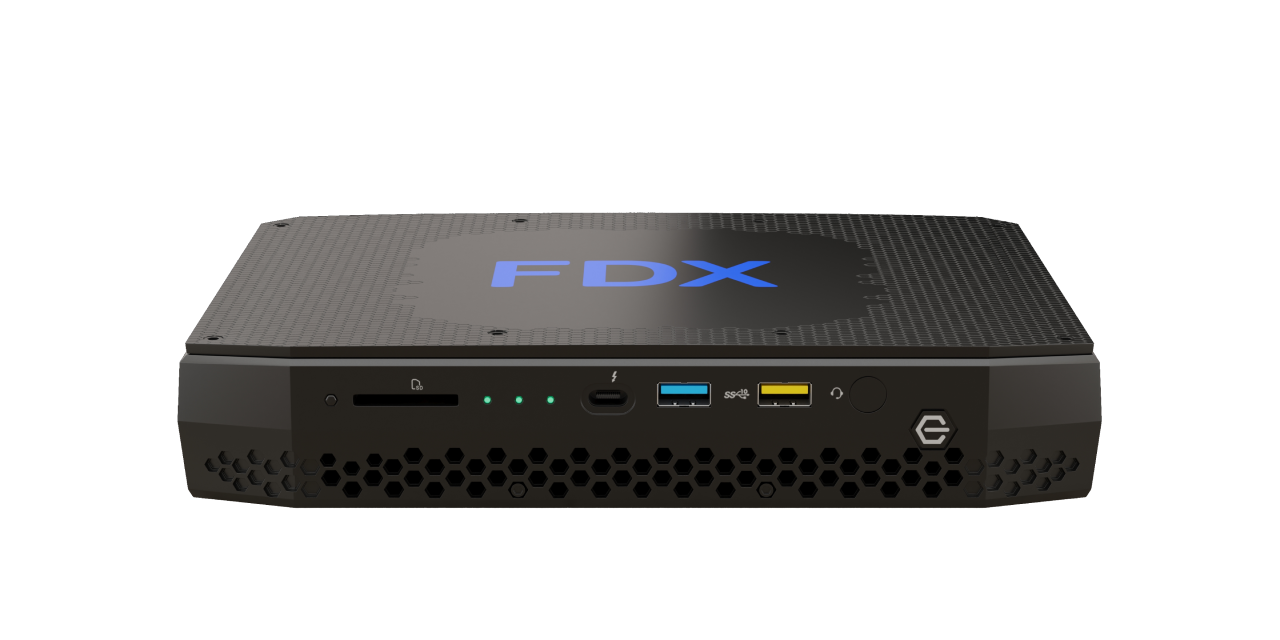

FilmDataBox Front

FDX Box Hardware

Basisdaten

Status
Launched

Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors

Launch Date
Q1’18

Supported Operating Systems
Windows 10, 64-bit*, Windows Server 2016*

Board Number
NUC8i7HNB

Socket
Soldered-down BGA

Internal Drive Form Factor
M.2 SSD

# of Internal Drives Supported
2

Lithography
14 nm

TDP
65 w

DC Input Voltage Supported
19 VDC

Board Chipset
Mobile Intel® HM175 Chipset

Processor Included
Intel® Core™ i7-8705G Processor

Warranty Period
3 yrs

Speicher & Festplatte

Max Memory Size (dependent on memory type)
32 GB

Memory Types
DDR4-2400+ 1.2V SO-DIMM

Max # of Memory Channels
2

Max Memory Bandwidth
38.4 GB/s

Max # of DIMMs
2

ECC Memory Supported
No

Processor Graphics
Intel® HD Graphics 630

Integrated Graphics
Yes

Graphics Output
Graphics Output

# of Displays Supported
6

Discrete Graphics
Radeon™ RX Vega M GL graphics

Erweiterungs Optionen

PCI Express Revision
Gen3

PCI Express Configurations
Dual M.2 slots with PCIe x4 lanes

Removable Memory Card Slot
SDXC with UHS-I support

M.2 Card Slot (wireless)
2230

M.2 Card Slot (storage)
22×42/80, 22×80

I/O Anschlüsse

# of USB Ports
13

USB Configuration
F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3

USB Revision
2.0, 3.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal)
0 + 2

USB 3.0 Configuration (External + Internal)
1F, 4R, 2i

Total # of SATA Ports
2

Max # of SATA 6.0 Gb/s Ports
2

RAID Configuration
2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)

Integrated LAN
Intel® Ethernet Connection i219-LM and i210-AT

Integrated Wireless
Intel® Wireless-AC 8265 + Bluetooth 4.2

Integrated Bluetooth
Yes

Consumer Infrared Rx Sensor
Yes

S/PDIF Out Connector
TOSLINK

Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL

# of Thunderbolt™ Ports
# of Thunderbolt™ Ports

Maße

Geräteabmessungen
221 x 142 x 39mm

Erweitert

Intel® Virtualization Technology for Directed I/O (VT-d)
Yes

Intel vPro® Platform Eligibility
No

TPM
No

Intel® HD Audio Technology
Yes

Intel® Rapid Storage Technology
Yes

Intel® Virtualization Technology (VT-x)
Yes

Intel® Platform Trust Technology (Intel® PTT)
Yes

Software

Lesbare Codecs

Red RawMagic Lantern MLV
ProRes 422XDCAM EX
ProRes 4444XDCAM HD
AVCMXF
AVC-IntraH.264 mov
HEVCH.264 mp4

Schreibbare Codecs

DNxHDAvid Container1920×1080Bitrate: 36Mb/s
H.264Up toEX1920×1080Up top 10 MBit/s
AVC-INTRA 1001920×1080100 Mb/s
ProRes1920×1080LT or Proxy
ProRes3840×2160LT or Proxy
CinemaDNG

Akku Verbrauch

RTest source Materialed
1920×1080 XAVC from Sony Alpha on SD Cards
60GB per card (sample 046, from Camelot)
Workflow
2 Backups, to LaCie 2.5” HDDs
No Verify
Time to process 1 Card: 00:12:18

Wir empfehlen Jauch Power Banks

Battery Icon

JPB20AHB

Energy: 73 Wh
Copied 4 cards
Had 48% of capacity remaining
Which lasts for 45 minutes of idle time.

JPB20AHB can copy 7 cards
If there is no idle time between.

* Transcodes sind im Akkubetrieb deaktiviert, die CPU-Leistung wird um 15% reduziert, um Leistungsspitzen zu vermeiden.

Versionen

1.1.1. released on 1.3.2020

  • DNX HD Transcode integrated
  • DNX HD Transcode integrated
  • DNX HD Transcode integrated

1.1.0 released on 1.1.2020

  • DNX HD Transcode integrated
  • DNX HD Transcode integrated

19.1.2020

  • New Feature: Email notifications on completed upload.
  • Improvement: Redesigned Copy Report PDFs.
  • Improvement: Redesigned Dashboard layout.
  • Improvemen
